Training Runs
This page documents and compares different neural networks that have been trained through reinforcement learning. Each training run starts from a randomly initialized neural network and iterates between selfplay and training updates. All training runs were conducted using modest hardware with between 4 and 8 CPU cores.
Results
The following summarizes results for different training runs. The naming scheme is
v{MAJOR_VER}.{INCREMENT}, where MAJOR_VERSION indicates the training run number, and
{INCREMENT} denotes the number of training updates that have been made within that
training run. For example, v4.0 corresponds to the randomly initialized network for
training run 4, and v4.5 corresponds to the network in training run 4 after 5 updates.
The table below gives a summary for a selected set of training runs. "Size" specifies the size of the neural network architecture in terms of number of blocks and number of filters (e.g., 4 blocks with 64 filters). "Games" refers to the total number of selfplay games used for training. "ELO" is based on comparison against other engines with similar strength from the CCRL blitz ratings in 2+1 blitz matches.
| Network | Size | Block Type | Games | ELO | Comments |
|---|---|---|---|---|---|
| v14.40 | 5 x 64 | Squeeze Excitation | 128,000 | 1380 | Increased number of blocks |
| v12.25 | 4 x 64 | Squeeze Excitation | 80,000 | 1263 | Added squeeze-excitation layer to residual blocks |
| v11.25 | 4 x 64 | Residual | 80,000 | 1192 | Board oriented towards side to move |
| v9.20 | 4 x 64 | Residual | 64,000 | 1042 | First run with residual blocks |
| v8.15 | 4 x 64 | Convolution | 48,000 | 820 | Added en passant square to network input; updated parameters |
| v4.15 | 4 x 64 | Convolution | 48,000 | 789 | First successful training run |

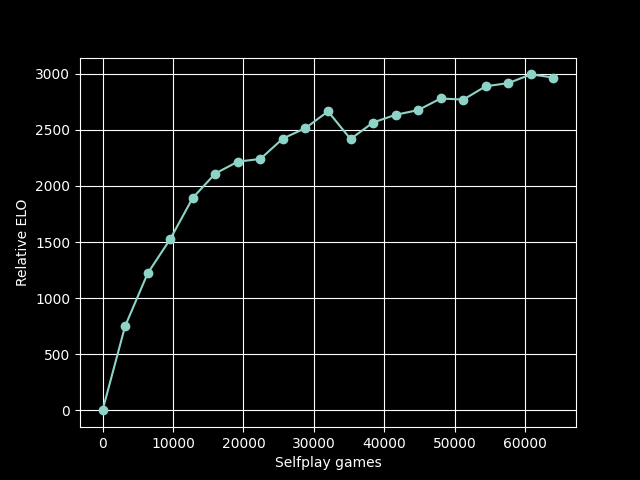

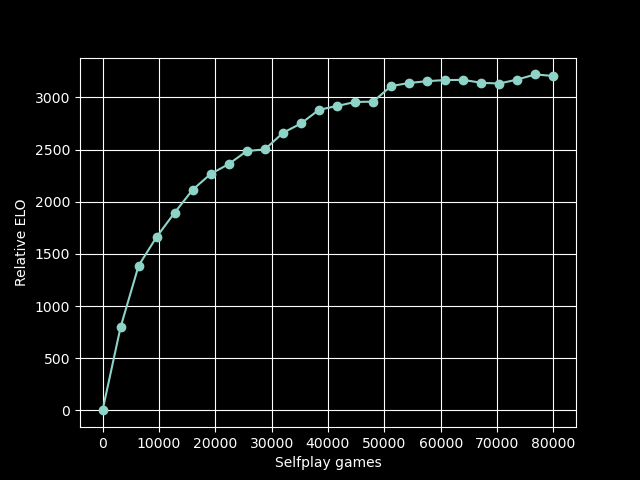

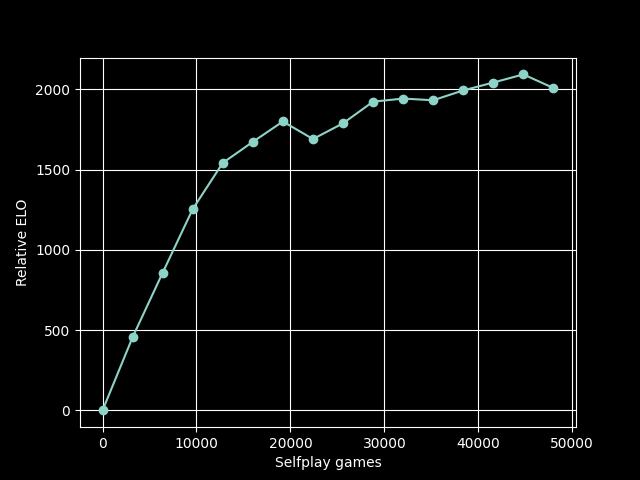

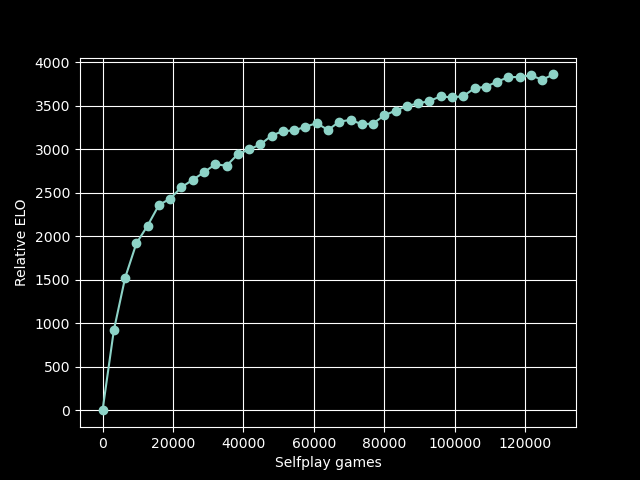

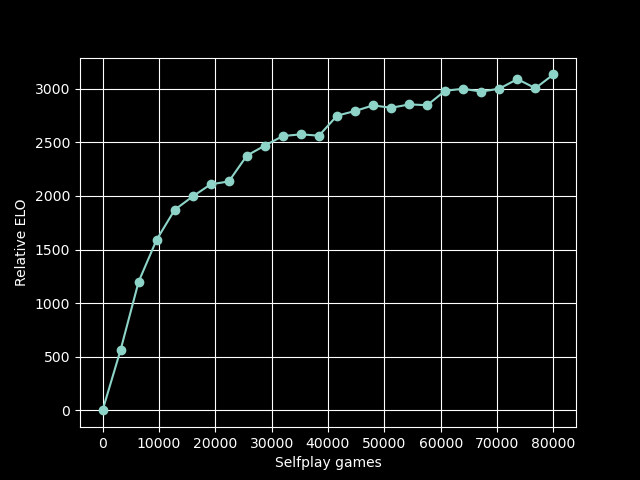

The below plots show estimated strength as a function of training history. Note that the y-axis is a relative ELO, which is set to 0 for the randomly initialized network. Relative ELO is calculated after each training update by running a 200-game tournament between the new network and the previous version. In this tournament, both models play each side from 100 different standard opening positions. Search is fixed at 800 playouts.
Settings
Move selection
- 800 MCTS rounds are used during self-play and model evaluation.
- Dirichlet noise is added to the root node with a concentration parameter equal to $0.03 \times 19 \times 19 / n_{moves}$, following Katago.
- Self-play
- Network v5 and later: all moves are selected randomly in proportion to visit count.
- Network v4 and earlier: the first 15 full moves (30 half-moves) are selected randomly in proportion to visit counts, and remaining moves are selected greedily based on maximum visit count.
- Tree search is done in serial. During self-play, parallelization is accomplished by running multiple processes.
Self-play
- Self-play games were assigned a draw outcome if the game exceeded 256 half-moves.
- Each iteration consisted of 3,200 self-play games, after which a training update was performed.
Training
- Training batch size was 256 moves.
- For each training iteration, all move data generated during the previous self-play iteration were used. For example, supposing 100 moves per game, we have $100 \times 3,200 = 320,000$ moves for training. With a batch size of 256, this corresponds to roughly 1,250 training steps.
- Stochastic gradient descent was used with a learning rate of 5e-3.
Evaluation
- Strength was evaluated relative to the previous version after each training iteration.
- During evaluation, Dirichlet noise was disabled and all moves were selected greedily based on visit count. Evaluation used 800 playouts (the same as selfplay).
- 200 games were played, with each player playing both sides from 100 standard opening positions after 6 ply.
- Evaluation games were limited to 150 full moves, after which they were adjudicated a draw.
- Evaluation was performed using cutechess-cli.
Hardware
Training runs beginning with v9 were done using a refurbished Lenovo ThinkCentre mini pc with an Intel Core i7 having 4 cores and 8 threads. Some initial issues with overheating had to be resolved by limiting the clock speed to 2.7 GHz. Selfplay was done using the serial MCTS implementation with 4 self-play processes running concurrently, each using a single thread for network inference. Due to the use of a cache for network inference, throughput increases over the course of model training. At iteration v9.5, throughput was about 2.83 moves per second per process, for a total of approximately 11.32 moves per second. A typical self-play iteration consisting of 800 games per worker (3,200 total) took about 10 hours, followed by an hour or so for the training update and strength evaluation.
Earlier training runs were done on an Amazon EC2 instance with 8 virtual CPUs. To obtain the best self-play throughput with the serial MCTS implementation, 8 self-play processes were run concurrently, and neural network model evaluation for each process was configured to use one thread. Typical throughput was approximately 2.35 moves per second per process, for a total of approximately 18.8 moves per second (this was before network caching was implemented in dlchess). A typical self-play iteration consisting of 400 games per worker (3,200 total) took about 7 hours. After generating self-play data, the training update was fast, taking on the order of minutes.
